Product Overview
Features

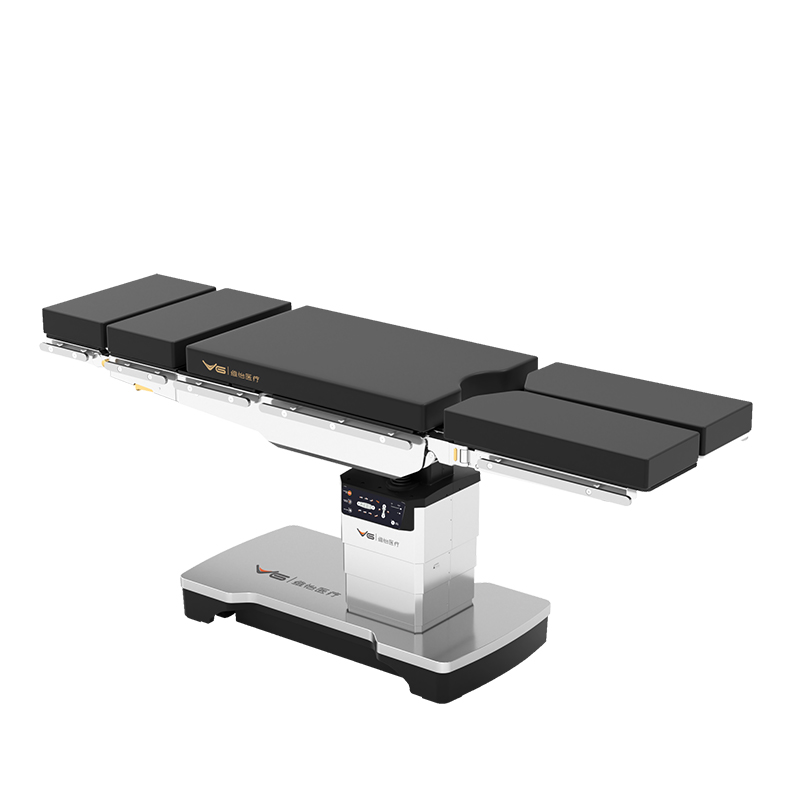

Modular design, quick assembly of table top each section.
Optional "Electric Autodrive" for easy patient transfer.

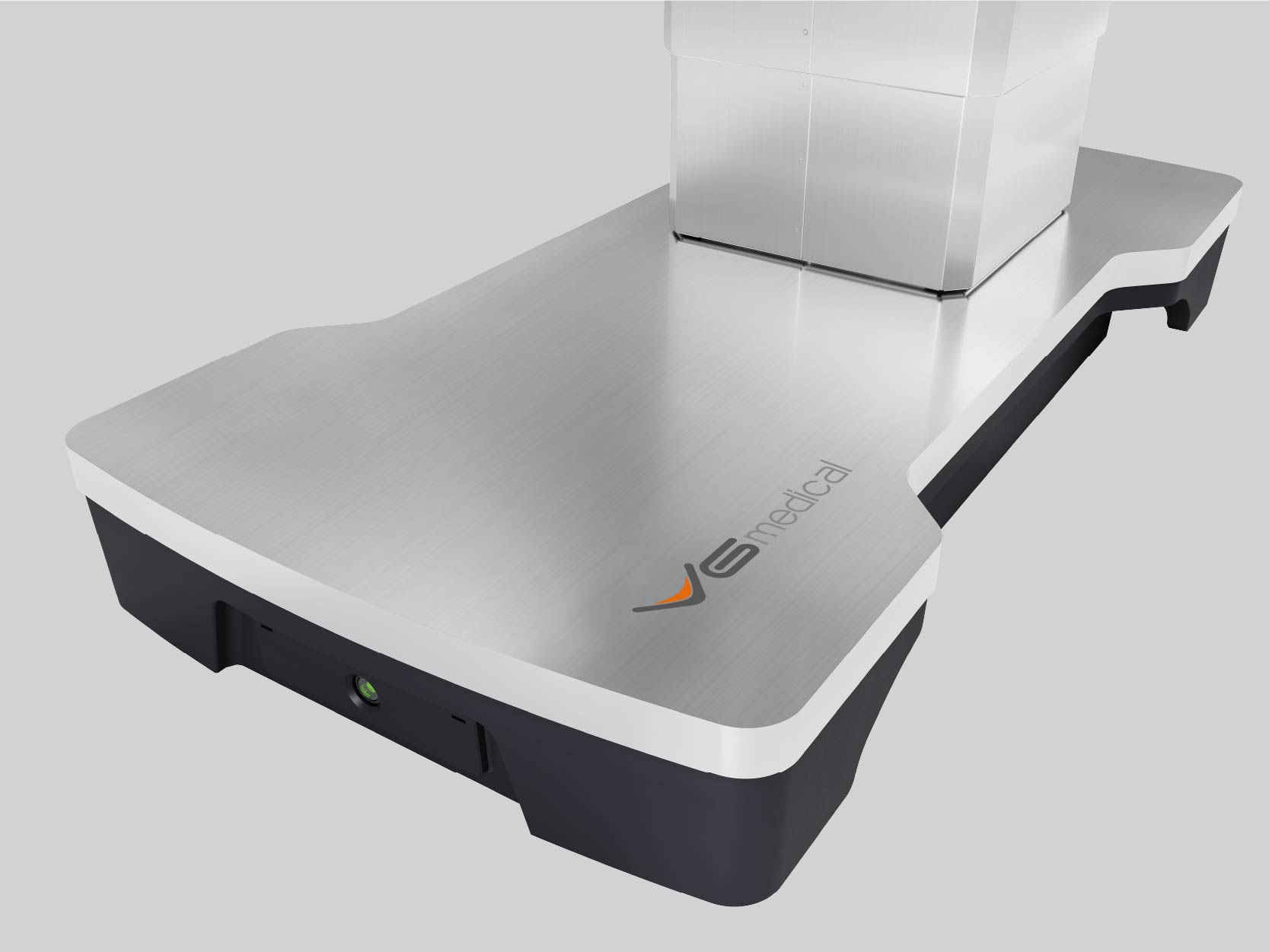

304 stainless steel, anti-erosive, easy to clean; Memory foam mattress is waterproof.

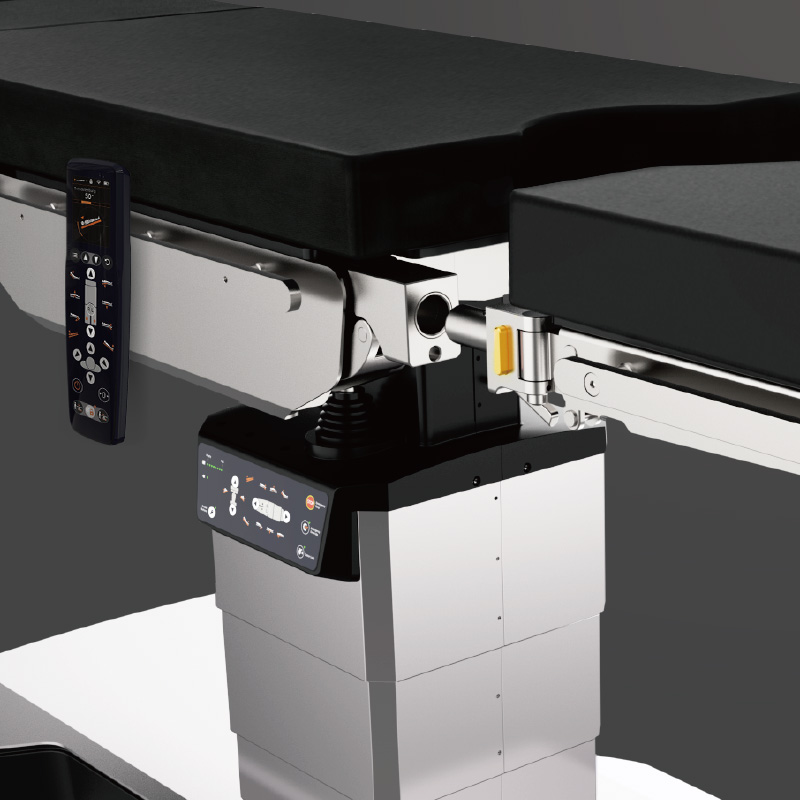

Dual controlling system, improve workflow efficiency.
----

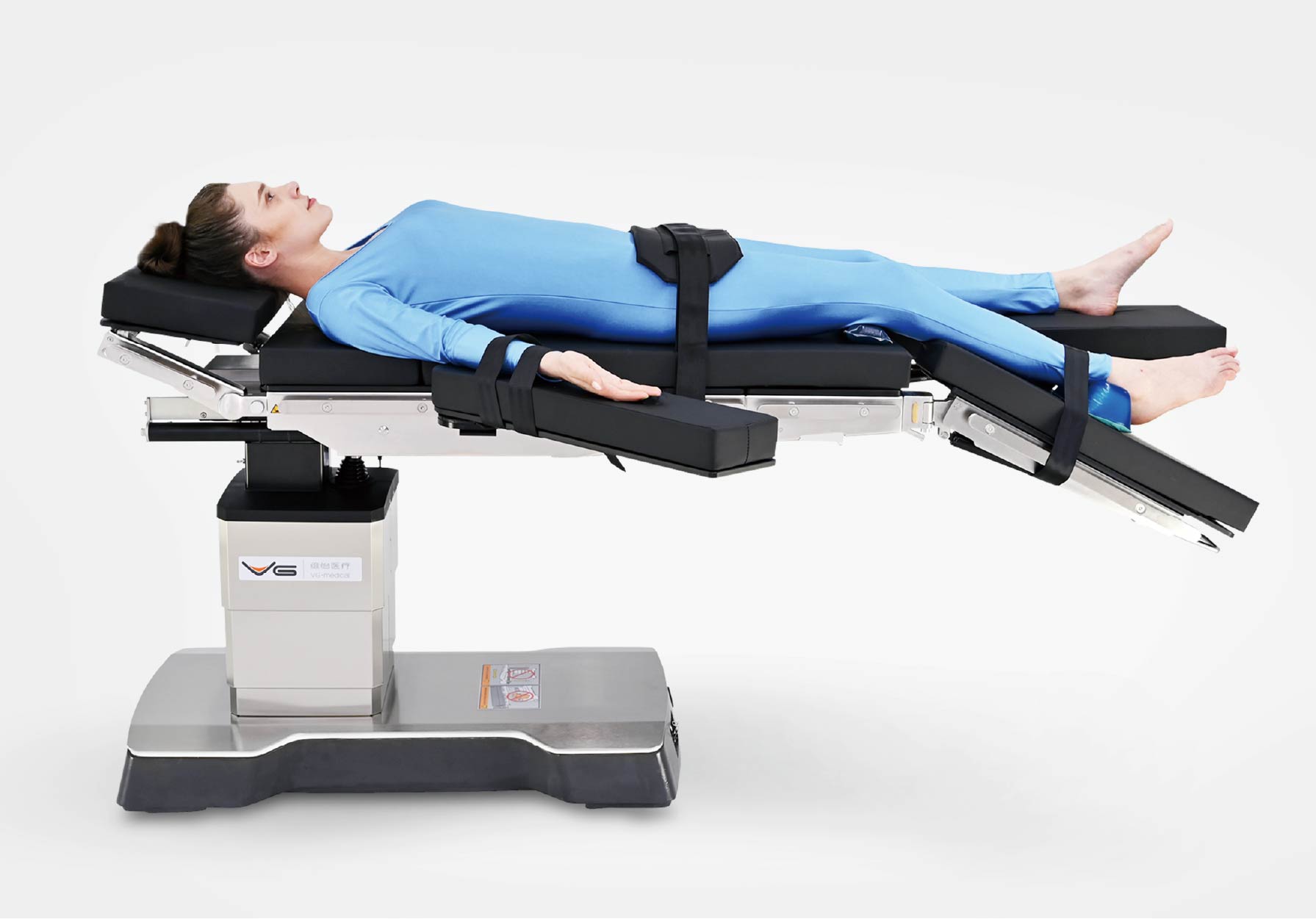

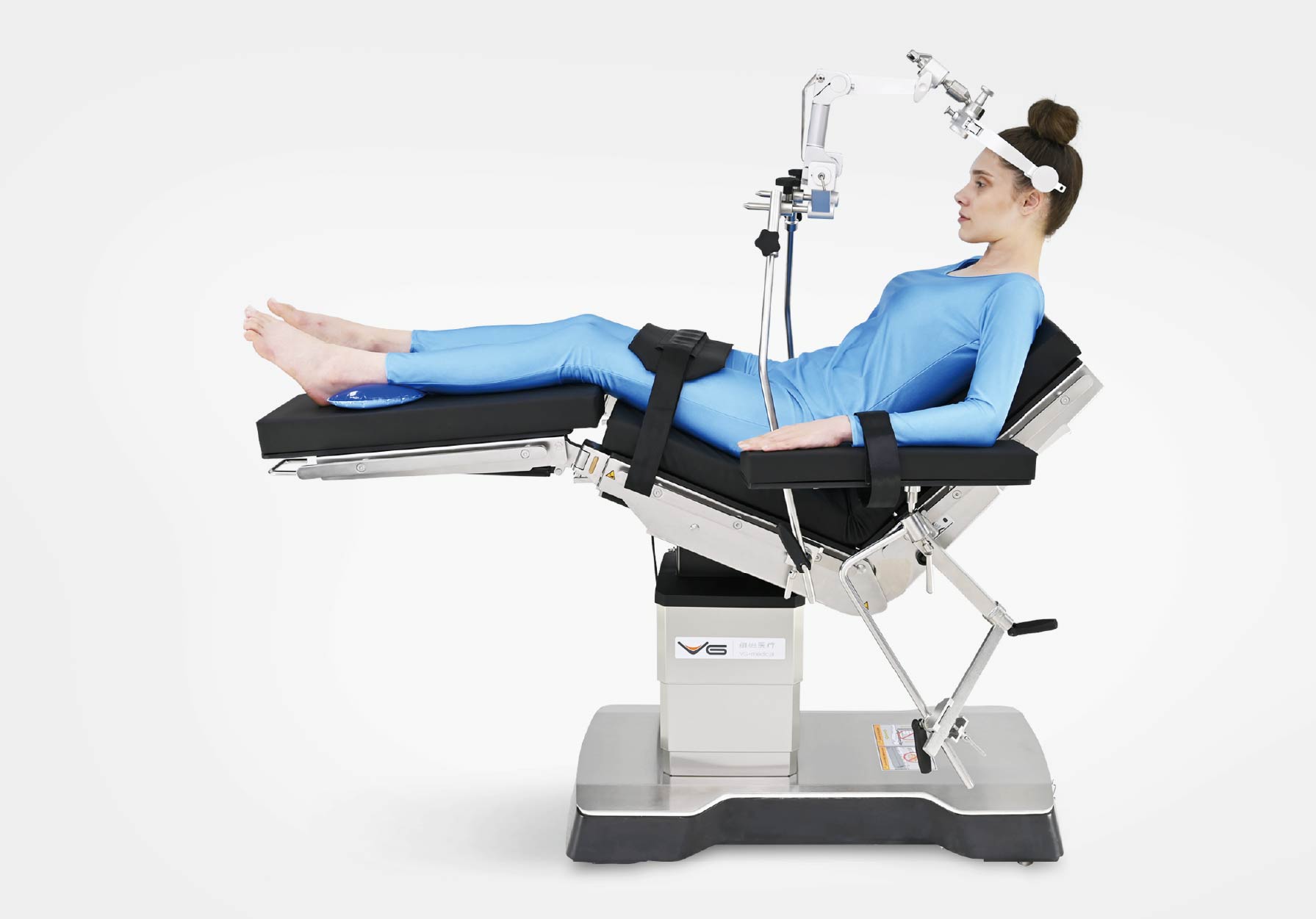

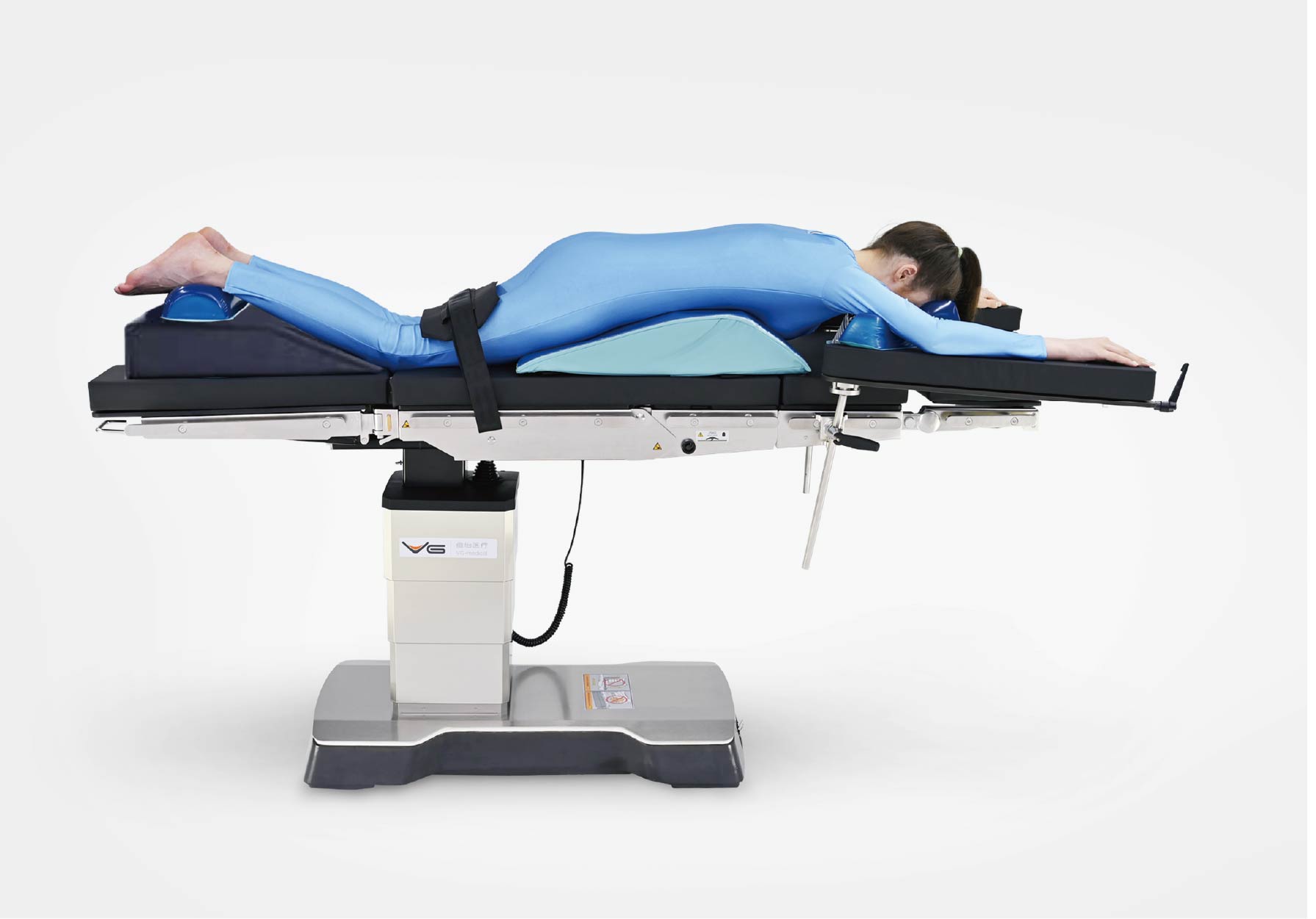

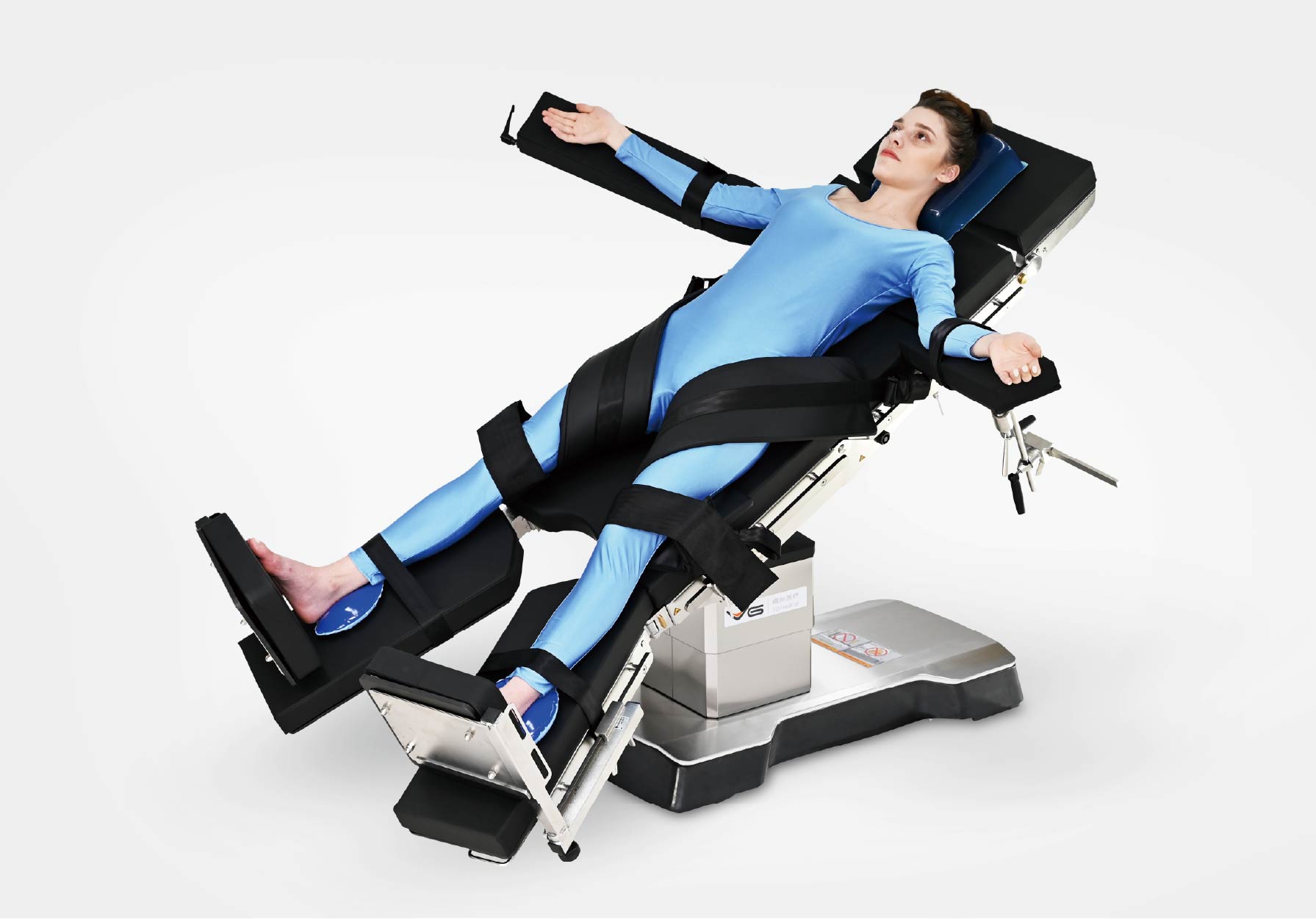

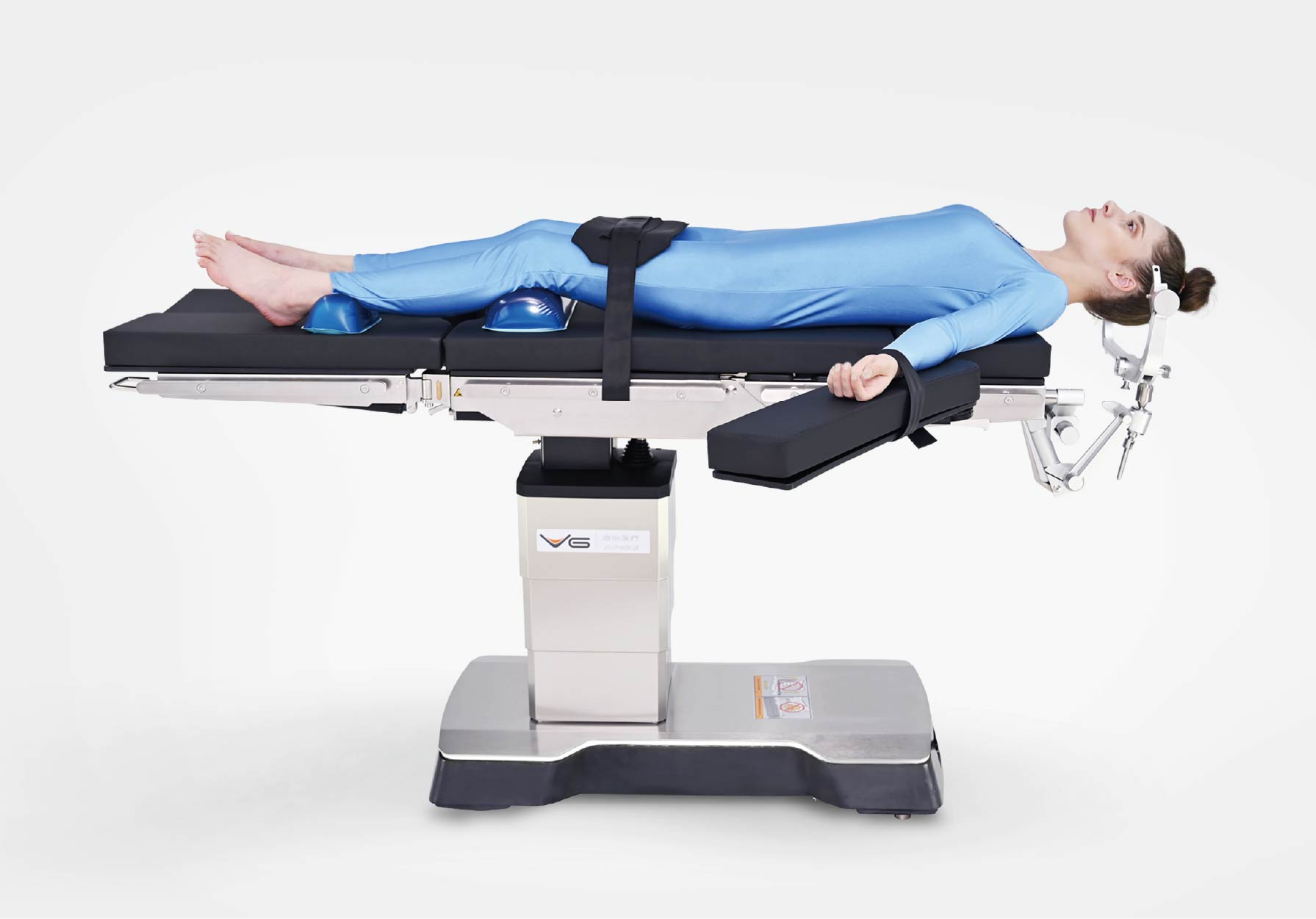

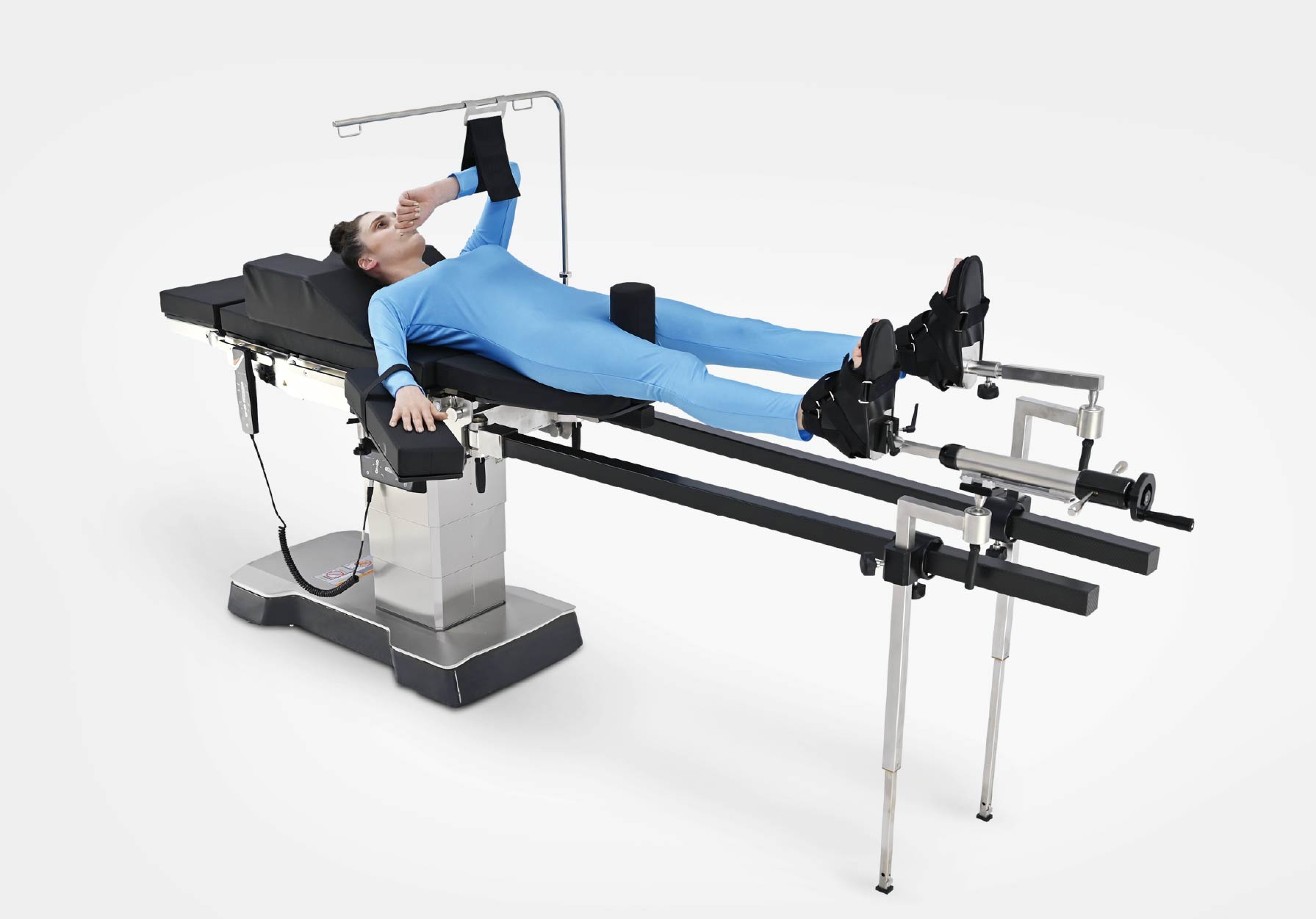

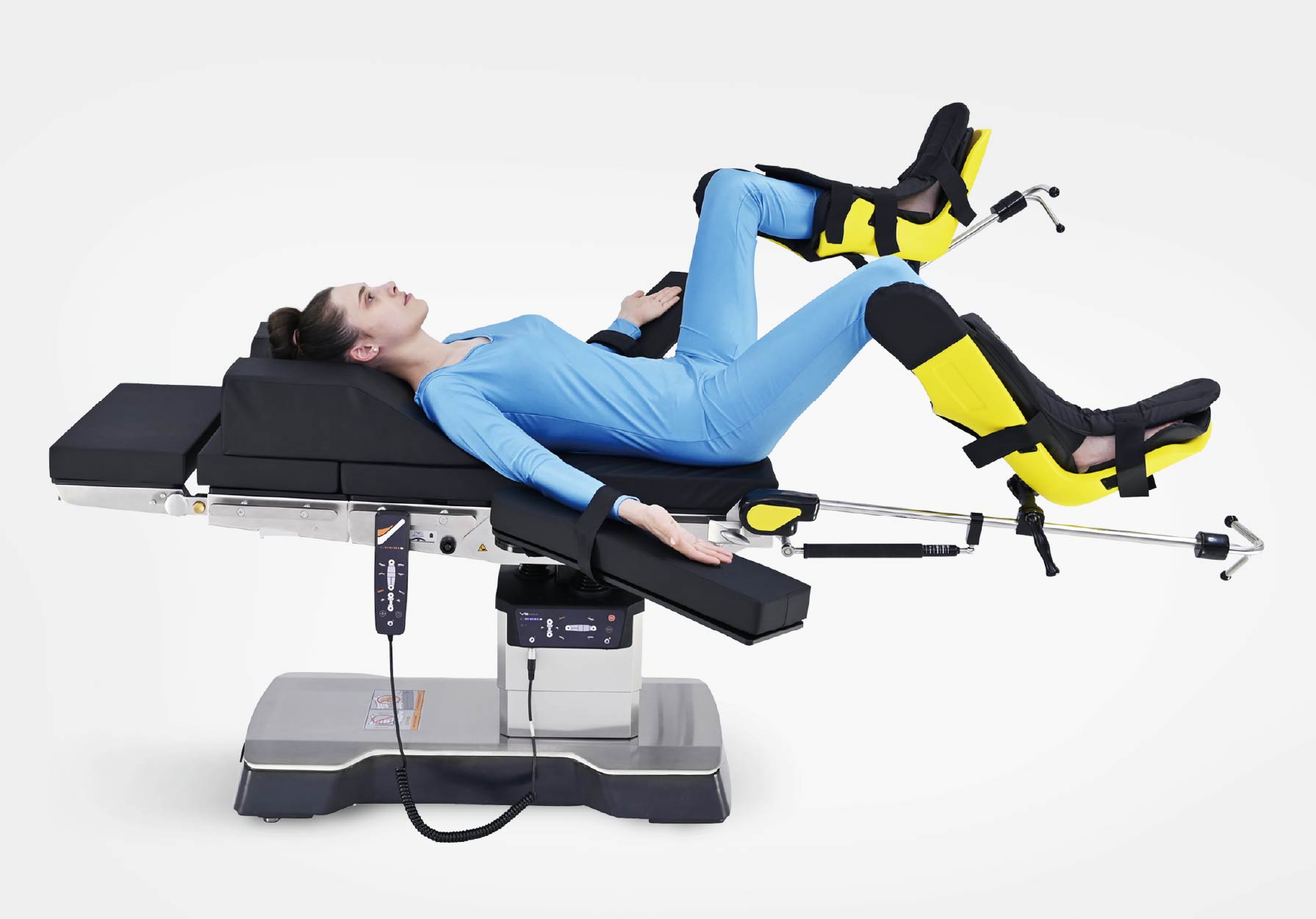

Orthopedic/Trauma Surgery
| Model | Vcare 5111 | Vcare 5511 | Vcare 7111 | Vcare 7511 |
| length * width (excluding side rail) | 2050mm*520mm | 2050mm*520mm | 2050mm*520mm | 2050mm*520mm |
| Head plate width (excluding side rail) | 492mm | 492mm | 492mm | 492mm |
| Minimum table-top height (excluding pad thickness) | 600mm | 495mm | 600mm | 495mm |

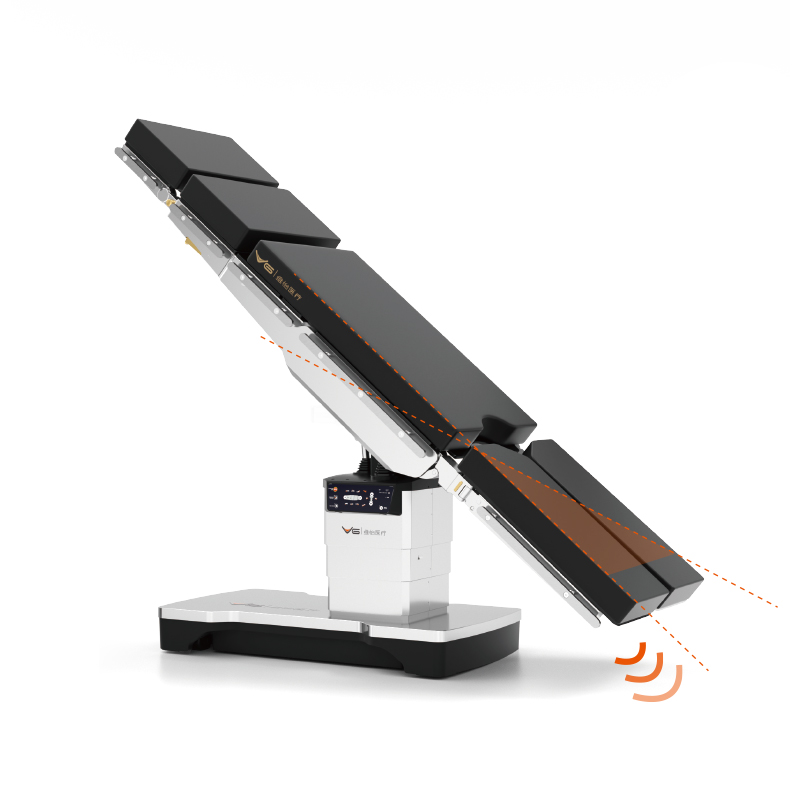

| Tabletop Trendelenburg / Reverse | 36° | 36° | 36° | 36° |
| Tilt left / Right | 26° | 26° | 26° | 26° |
| Head plate |
Up≥60° Down≥90° |
Up≥60° Down≥90° |
Up≥60° Down≥90° |
Up≥60° Down≥90° |

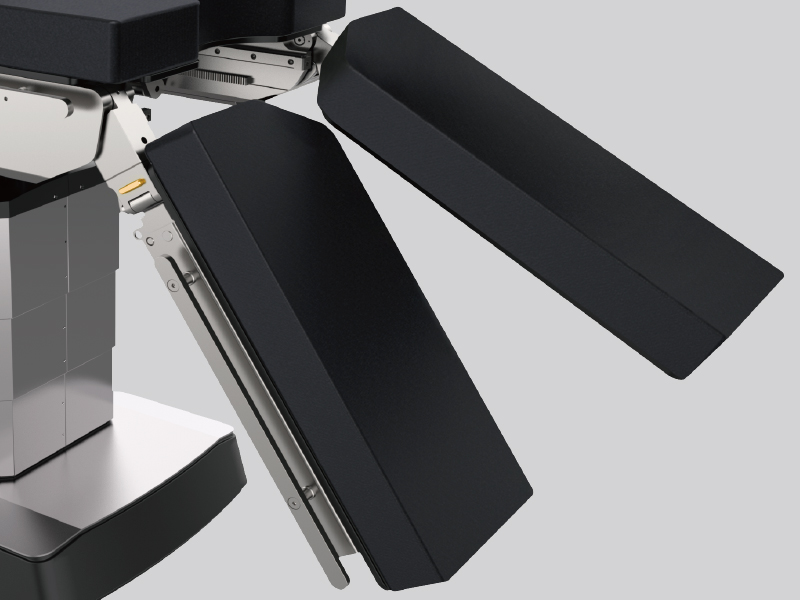

| Leg plate | Up 35°(Mechanical) Down 100° (Mechanical) Outwards≥90° |
Up 35°(Mechanical) Down 100° (Mechanical) Outwards≥90° |
Up 80°Electrical) Down 100°Electrical) |
Up 80°Electrical) Down 100°Electrical) |
| Tabletop lifting | 440mm(standard) | 500mm (low version) | 440mm(standard) | 500mm (low version) |
| Back plate | Up 80° Down 40° |
Up 80° Down 40° |
Up 80° Down 40° |
Up 80° Down 40° |

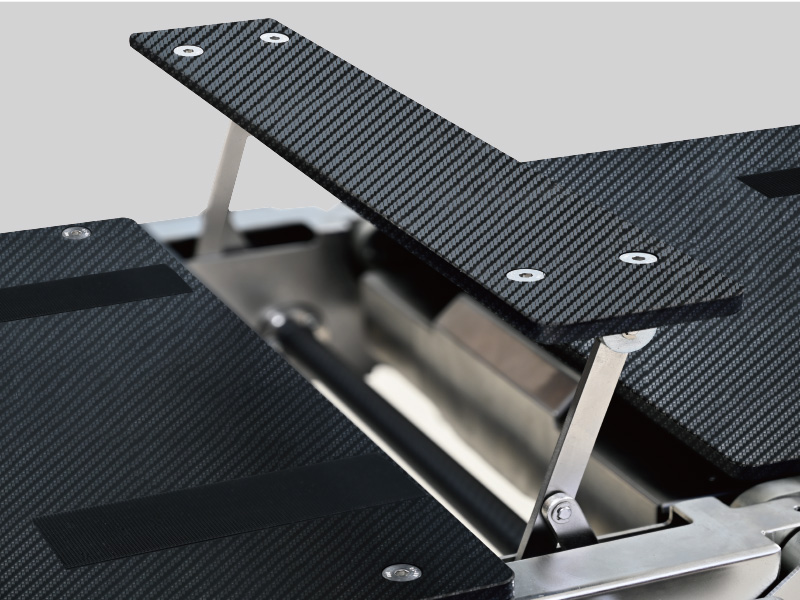

| Kidney bridge height | 120mm (Mechanical) | 120mm (Mechanical) | 120mm Electrical (optional) | 120mm Electrical (optional) |

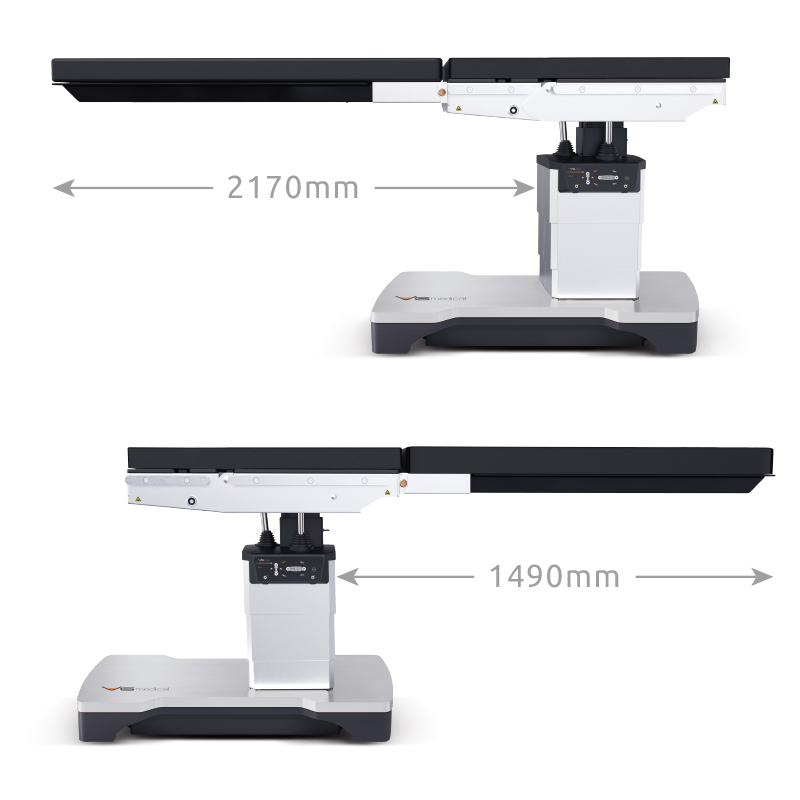

| Longitudinal slide | 350mm | 350mm | 400mm | 400mm |

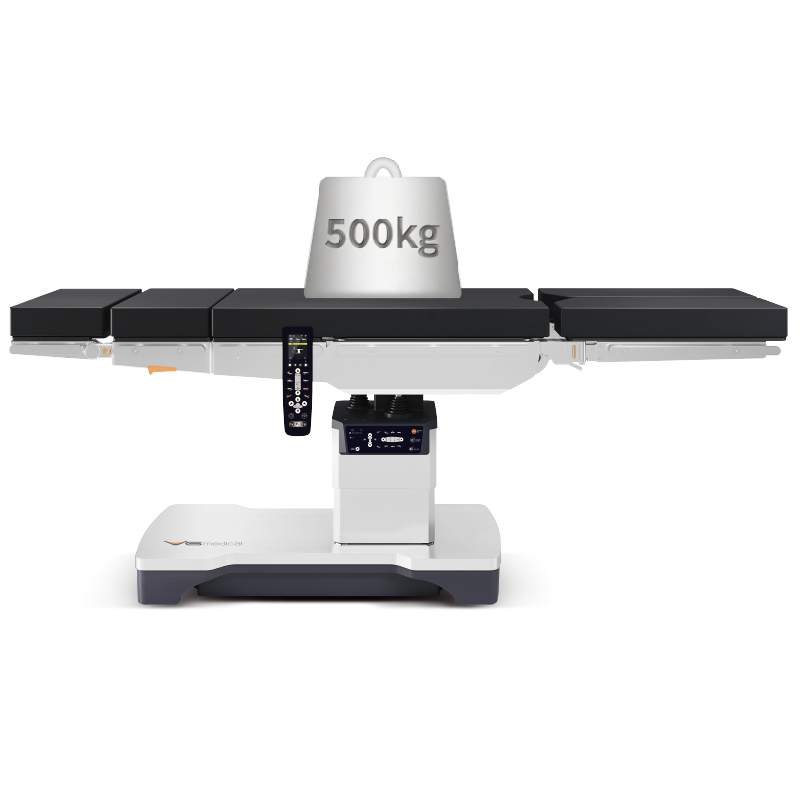

| Load capacity | 480kg | 480kg | 500kg | 500kg |
| Reflex / Flex | 100°/220° | 100°/220° | 100°/220° | 100°/220° |
Overview Comply with IEC 60601-2-42, IEC 60601-1, IEC 60601-1-2 Medical Device Regulation (EU) 2017/745 Premium electro-hydraulic operating table for complex surgeries Smooth, quiet, and precise positioning Max 280 kg – stable and reliable Optional kidney bridge, sliding top, ultra-low position Orthopedics, urology, and neurosurgery High-quality materials, precision engineering – durable for demanding OR environments
Details
Overview Comply with IEC 60601-2-46, IEC 60601-1, IEC 60601-1-2 Multi-functional electric operating table for multi-disciplinary surgeries Modular tabletop supporting electric lifting, tilting, and backplate folding High-capacity rechargeable battery ensuring uninterrupted power during procedures Excellent X-ray transparency 260 kg safe working load Optional kidney elevator and sliding function Precision, safety, and flexibility for modern operating rooms
Details

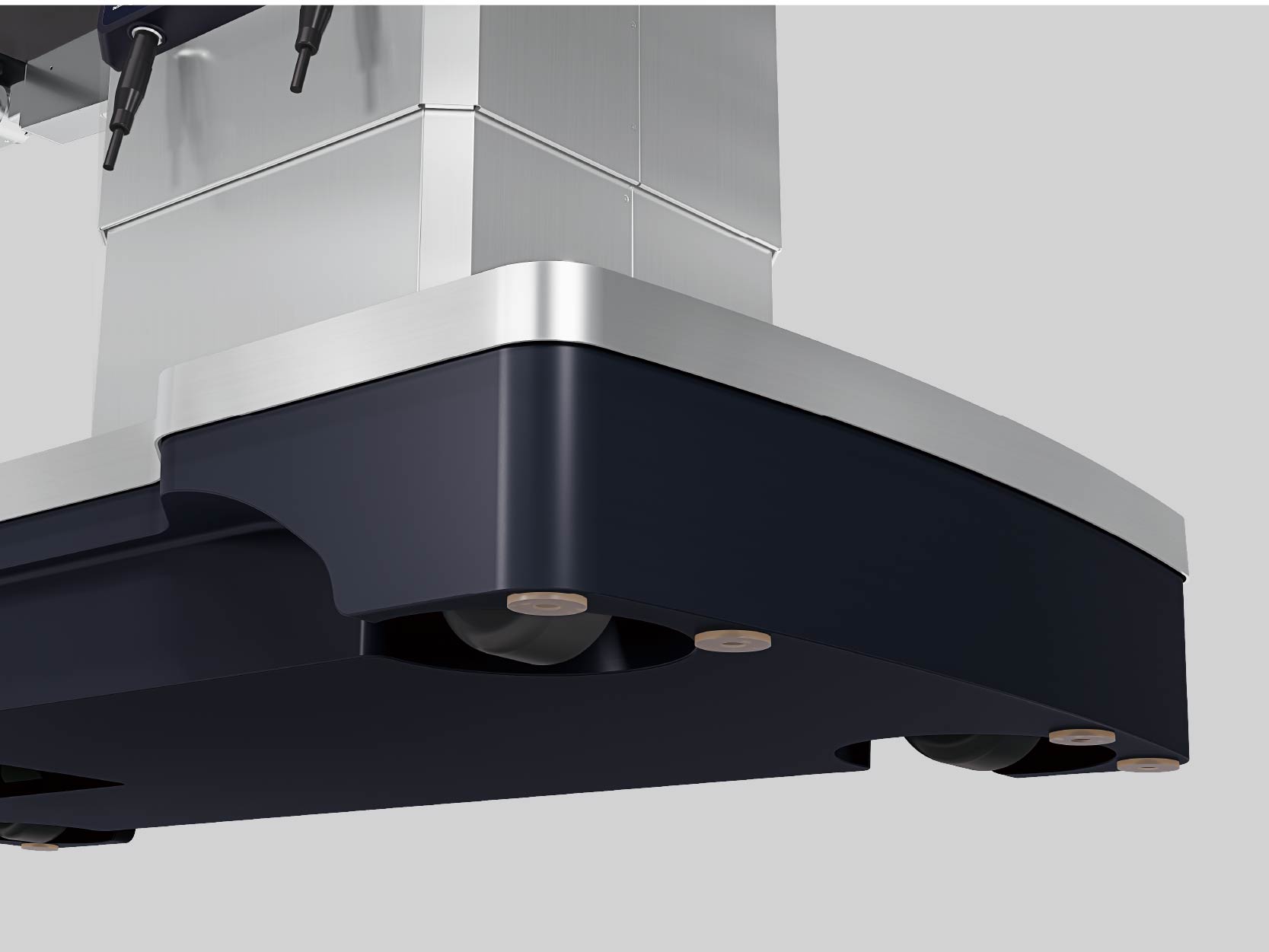

Overview Comply with IEC 60601-2-46, IEC 60601-1, IEC 60601-1-2 Medical Device Regulation (EU) 2017/745, MDR CE certified Actuator-driven for smooth, quiet operation. 125mm medical-grade silent casters with braking system. Independent waist bridge supports renal and hepatic surgeries. SUS304 stainless steel cover - corrosion-resistant, easy to clean. Smart features: one-touch reset and Flex/Re-flex. Intelligent battery management, AC/DC dual-compatible, supports one week of surgical use.
Detailsleave a message
