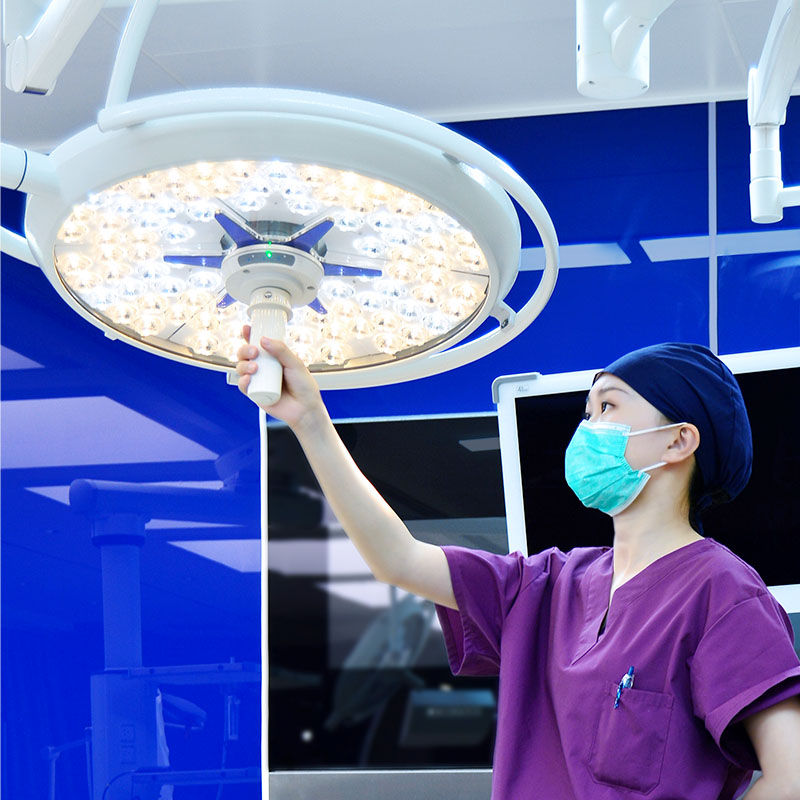

Overview
Features
Four types: 3500K, 4000K, 4500K, 5000K
Max illumination reaches 160k Lux.
Ra reaches 96 R9 reaches 98 (Max)
Depth of light more than 1000mm

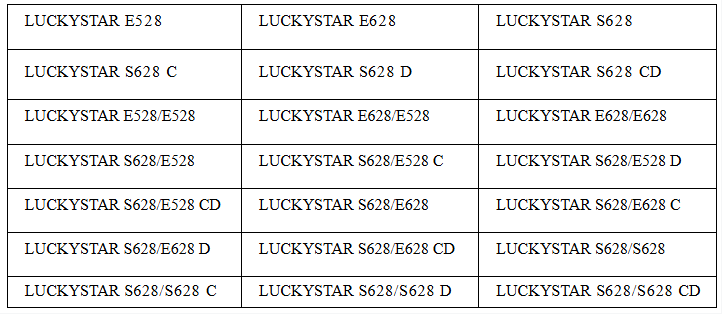

Model

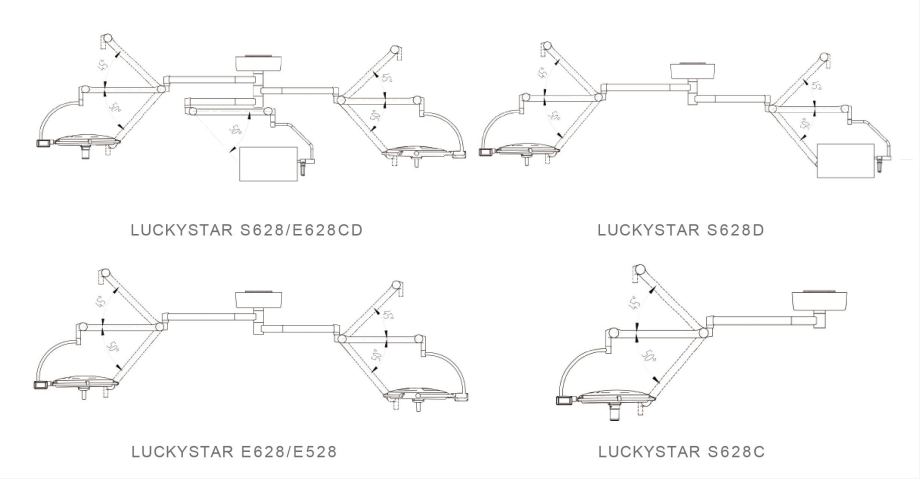

Naming Rules:
E528：No motorized focus, Ø528mm light head
E628：No motorized focus, Ø628mm light head
S628：With motorized focus, Ø628mm light head

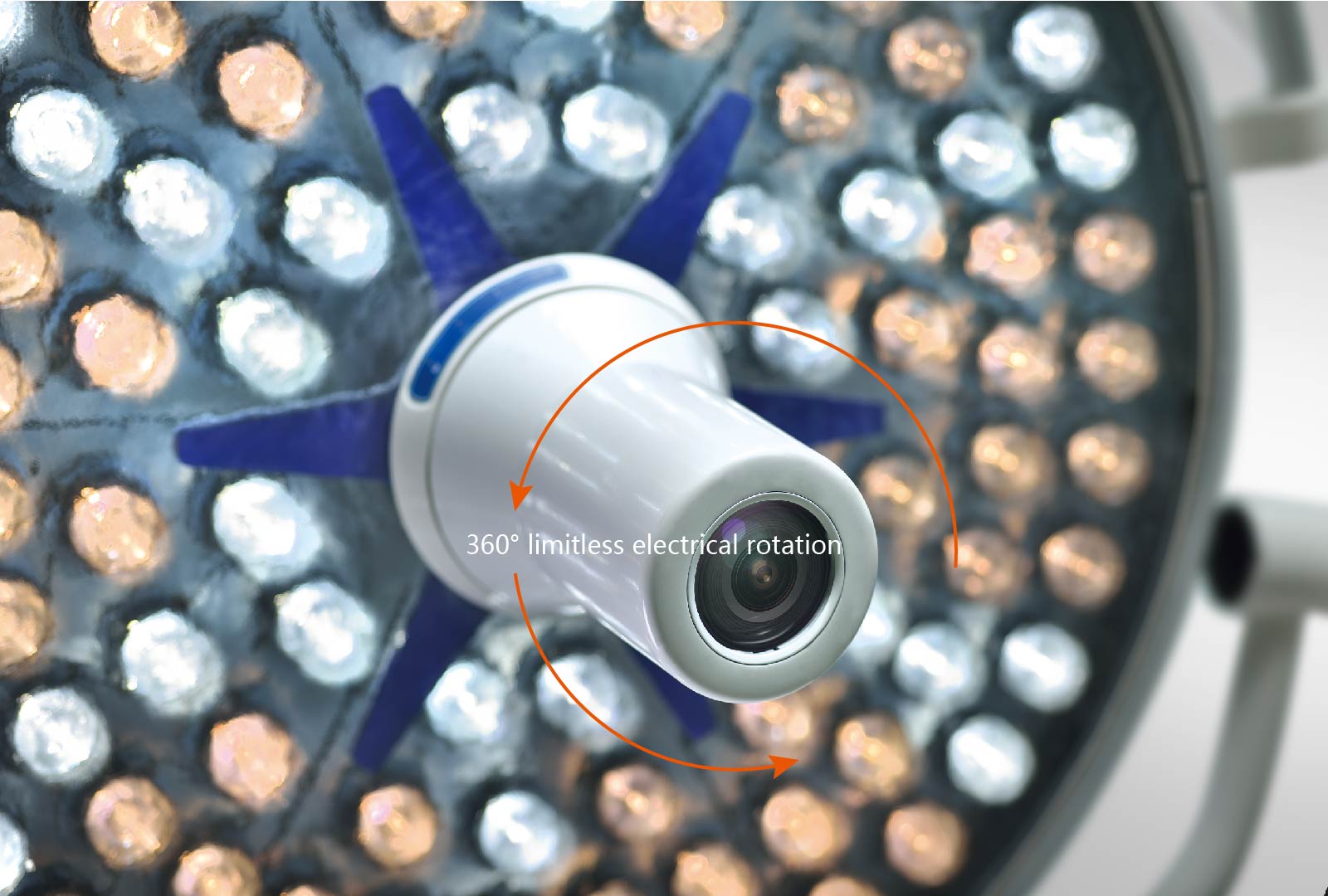

C：With camera system

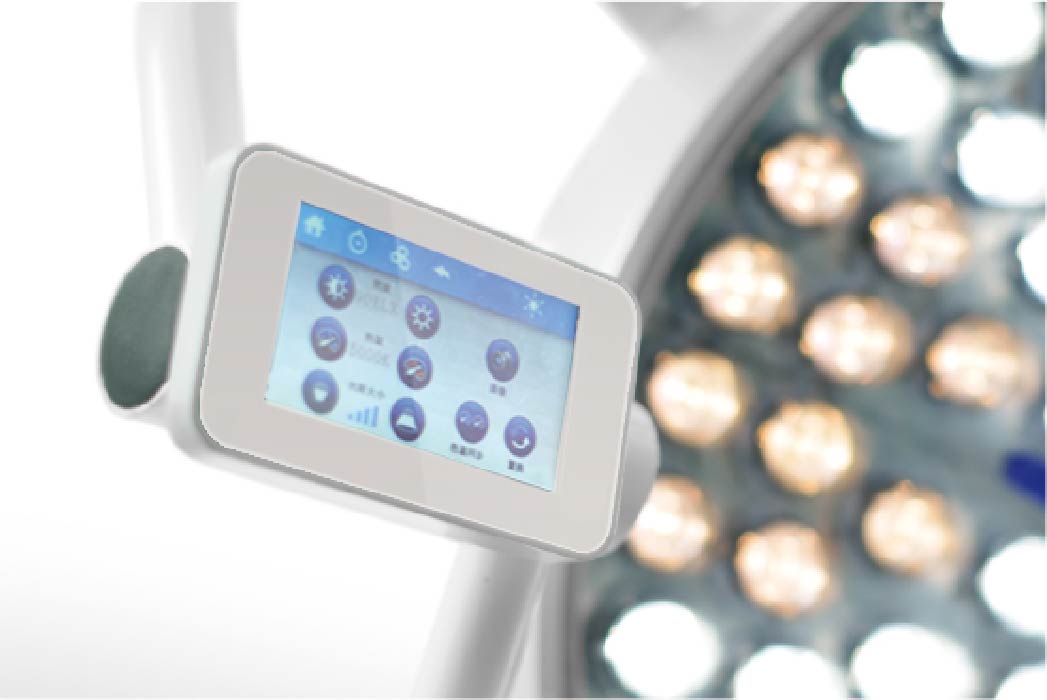

D：With display system
CD：With camera and display system
-----
|
Parameter
|
528 LED
|
628 LED |
|
Color temp (k)
|
3500K/4000K/4500K/5000K
|
3500K/4000K/4500K/5000K
|
|
Luminance (Lux)
|
40klx≤Ec≤140klx
|
40klx≤Ec≤140klx
|
|
Irradiance (w/㎡)
|
≤500
|
≤600
|
|
Radiance Energy (mw/㎡. Lx)
|
≤3.8
|
≤3.8
|
|
Diameter of light spot (mm)
|
200mm
|
200mm≤d10≤280mm
|
|
Depth of light(L1+L2) (mm)
|
≥1000mm
|
≥1000mm
|
|
Color Rendering index (Rₐ)
|
96 | 96 |
|
Input voltage (v)
|
AC110V / AC220V±22V
|
AC110V / AC220V±22V
|
|
Light head power consumption (w)
|
75W
|
100W
|
|
Electric frequency (Hz)
|
50Hz±1Hz
|
50Hz±1Hz
|
|
Working life (not continuous usage) (Hrs)
|
≥50000
|
≥50000
|
.
Video
Overview Comply with IEC 60601-1, IEC 60601-2-41, IEC 60601-1-2 Medical Device Regulation (EU) 2017/745 (MDR) Compliant with GB/T 20145-2006 & RoHS Directive 2011/65/EU High-end positioning Advanced lighting technology Excellent color rendering performance Multi-level adjustable (illumination, light field, color temperature) Flexible configurations (single-head / double-head) Sterilizable handle Intelligent shadow management
Details
Overview Comply with IEC 60601-2-41, IEC 60601-1, IEC 60601-1-2 CE certification Comply with MDD 93/42 directive Available in ceiling wall and mobile mounting types Suitable for operating exam and treatment rooms Detachable handle facilitates disinfection and operation Features Ra 96±5 and adjustable brightness levels Offers stable lighting for clinical application
Details
Overview Comply with IEC 60601-1, IEC 60601-1-2, IEC 60601-2-41 Clamped (EXLED 15-A) & Mobile (EXLED 15-AM) 3 steps, 3500K–4700K 3 levels, up to 50,000 Lux 95±5 for true tissue color 330° rotating light head + 90° bending metal hose AC100-240V Reliable, easy operation, low maintenance
Details
Overview Improve surgical visualization capabilities Support medical education and training Facilitate remote consultation and collaboration Enable digital recording of surgical procedures
