Overview
Features

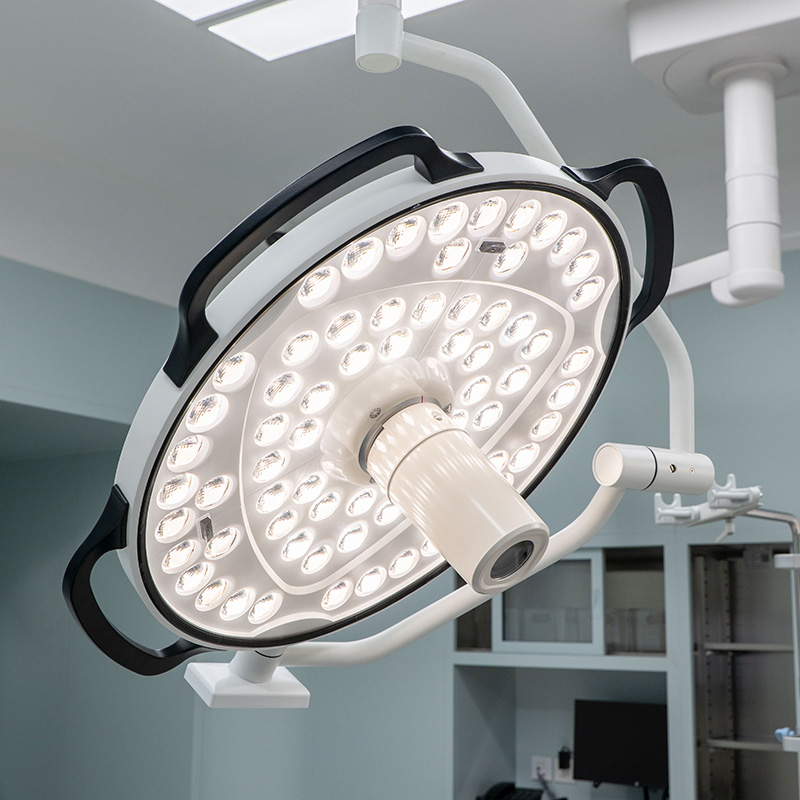

High contrast light for minimally invasive procedures.
mA-level control ensures flicker-free VLED light. Blue-light-free for eye comfort.

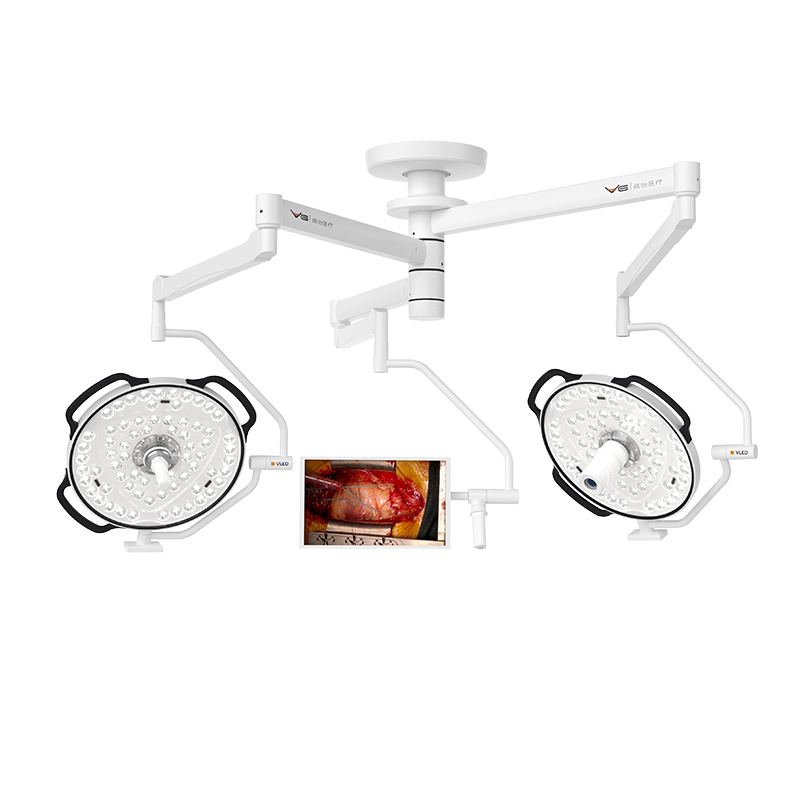

Smart color touch screen for fast OR operation. One panel controls two lamp heads.
Sensors optimize light and shadow in all conditions.

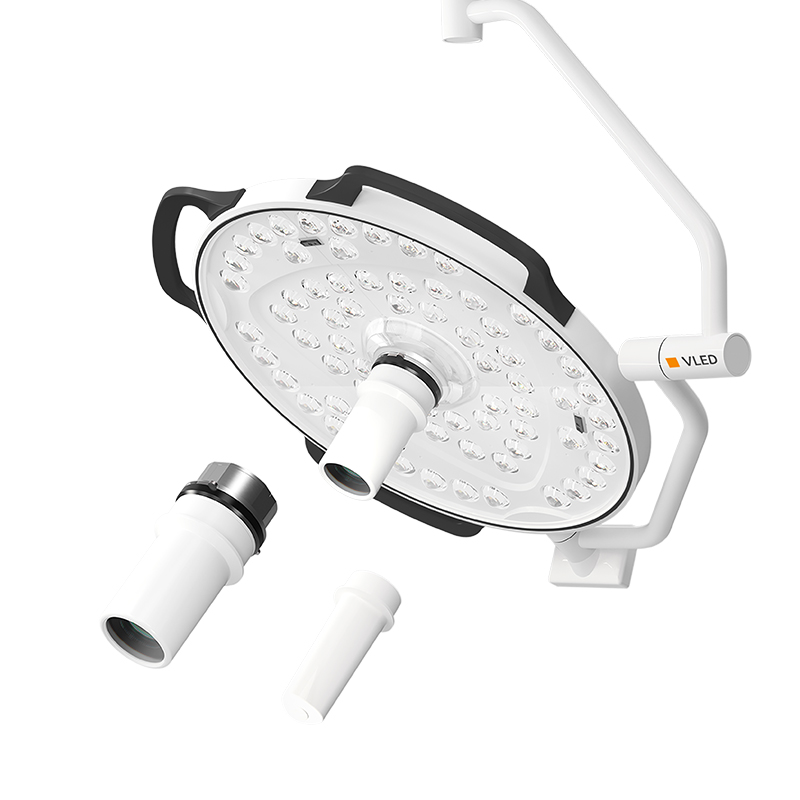

SCS sterile handle adjusts light easily.

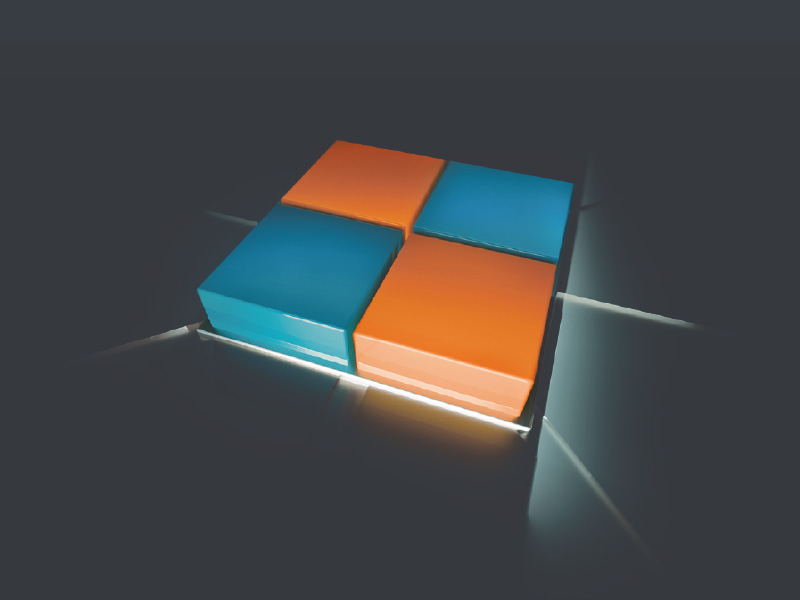

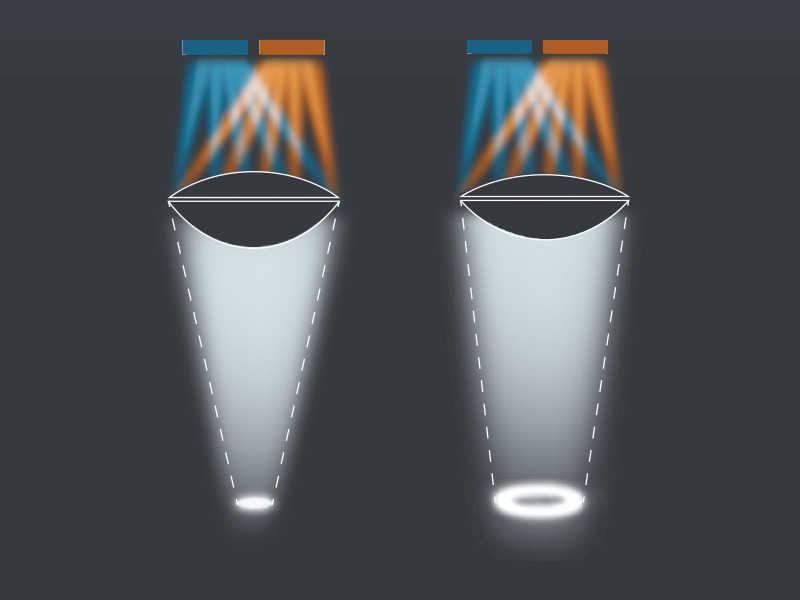

• The light source uses four LEDs for dual-color mixing within the lens, enabling adjustable color temperature while ensuring consistent CCT across the entire light path.
--

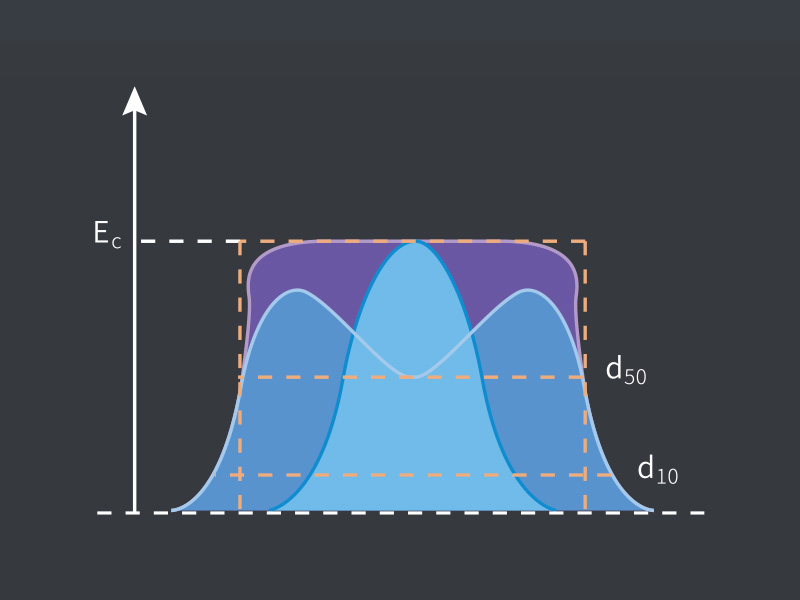

Fcaula uniformity: d50/d10≥70%
-
| Parameter | VLED5000 | VLED5500 | VLED7000 | VLED7500 |
| Illuminance Ec in 1m (lx) | 40,000–160,000 | 40,000–160,000 | 40,000–160,000 | 40,000–160,000 |
| Ambient light (lx) | 4,000–12,000 | 4,000–12,000 | 4,000–12,000 | 4,000–12,000 |
| 4300K | ✔ | ✔ | ||
| 3500K–5100K | ✔ | ✔ | ||

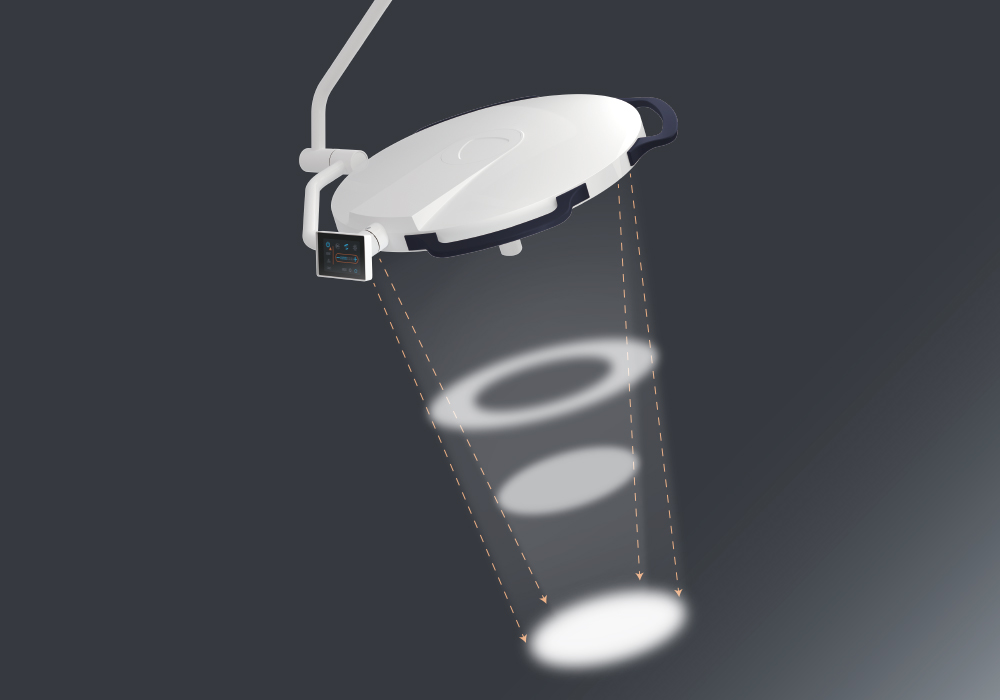

| Light patch diameter (mm) | 180-330 | 180-330 | 180-330 | 180-330 |
| d10 / d50 ratio | 70% | 70% | 70% | 70% |
| CRI (Rₐ) | 97 | 97 | 97 | 97 |
| Saturated Red R₉ | 97 | 97 | 97 | 97 |
| Skin Color R₁₃ | 99 | 99 | 99 | 99 |
| Illumination Depth in 20% (mm) | 1500 | 1500 | 1500 | 1500 |
| Illumination Depth in 60% (mm) | 950 | 950 | 950 | 950 |
| Total irradiance (W/m²) | 450 | 450 | 450 | 450 |
| Light Head Diameter (mm) | 600 | 600 | 600 | 600 |
| Service life (h) | 60000 | 60000 | 60000 | 60000 |
Overview Comply with IEC 60601-1, IEC 60601-2-41, IEC 60601-1-2 Medical Device Regulation (EU) 2017/745 (MDR) Compliant with GB/T 20145-2006 & RoHS Directive 2011/65/EU Single or double-head LED surgical lights Natural-like light, high CRI surgery lamp for OR Luminance, color temp, spot adjustable Sterilizable handle for easy adjustment 60,000-hour LED lifespan Optional camera system available Reliable, durable for modern ORs
Details
Overview Comply with IEC 60601-2-41, IEC 60601-1, IEC 60601-1-2 CE certification Comply with MDD 93/42 directive Available in ceiling wall and mobile mounting types Suitable for operating exam and treatment rooms Detachable handle facilitates disinfection and operation Features Ra 96±5 and adjustable brightness levels Offers stable lighting for clinical application
Details
Overview Comply with IEC 60601-1, IEC 60601-1-2, IEC 60601-2-41 Clamped (EXLED 15-A) & Mobile (EXLED 15-AM) 3 steps, 3500K–4700K 3 levels, up to 50,000 Lux 95±5 for true tissue color 330° rotating light head + 90° bending metal hose AC100-240V Reliable, easy operation, low maintenance
Details
Overview Improve surgical visualization capabilities Support medical education and training Facilitate remote consultation and collaboration Enable digital recording of surgical procedures
