CLED 328/ 388

CLED 328/ 388

Overview

Comply with IEC 60601-2-41, IEC 60601-1, IEC 60601-1-2
CE certification
Comply with MDD 93/42 directive

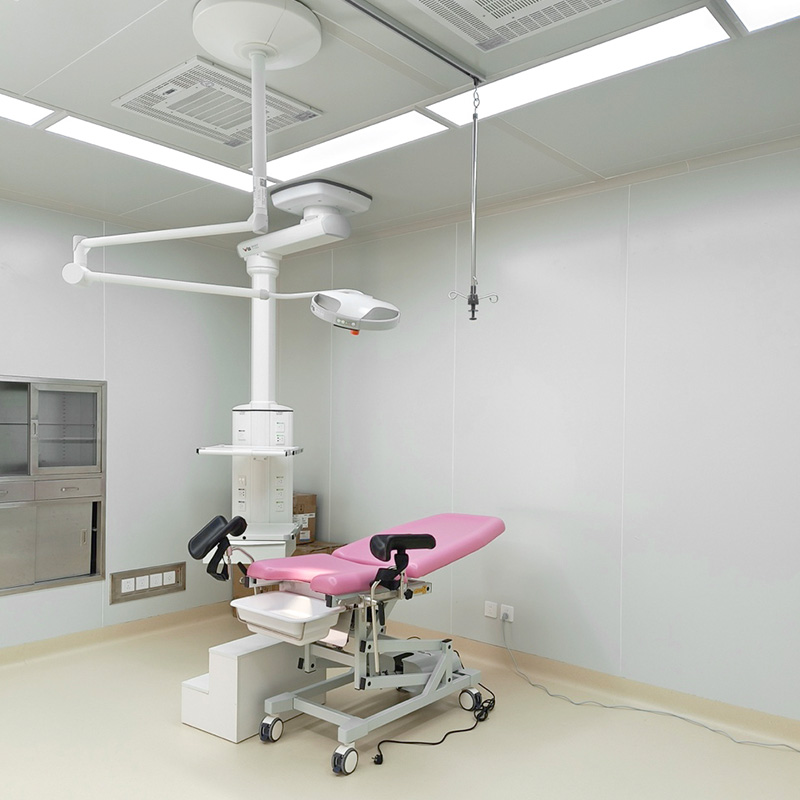

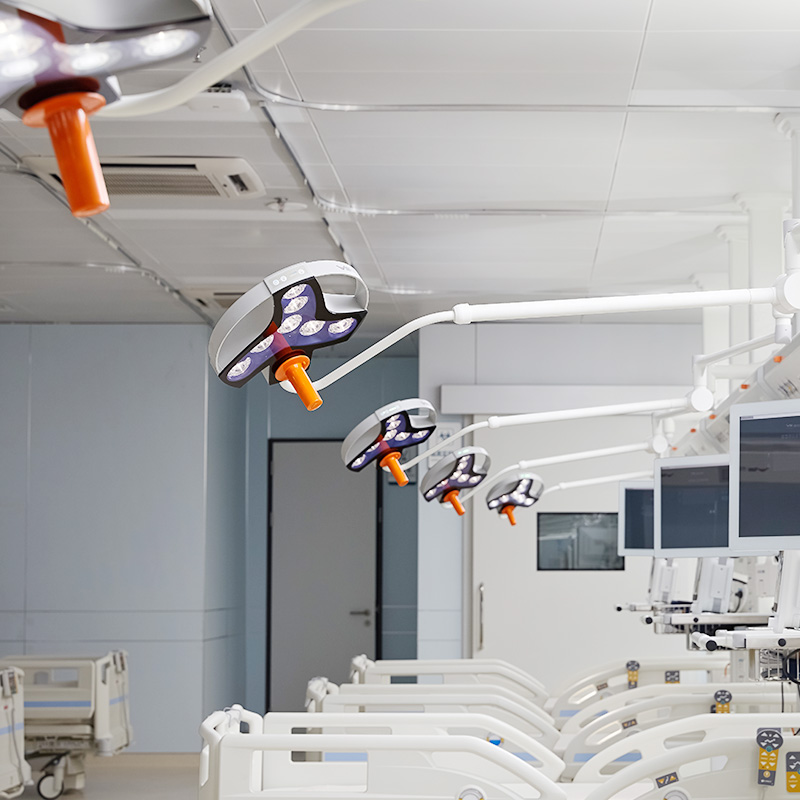

Available in ceiling wall and mobile mounting types
Suitable for operating exam and treatment rooms
Detachable handle facilitates disinfection and operation
Features Ra 96±5 and adjustable brightness levels
Offers stable lighting for clinical application

Features

LED bulbs from OSRAM. Optic Lens from French FRESENEL.

Excellent optic performance. Energy saving and compact designing for easy cleaning.

Multi-installation modes: Trolley-type, Wall-mounted, Ceiling-mounted.

CLED 328

Ergonomic Design
Smart and Light (2.1 KGS)
Various installation modes

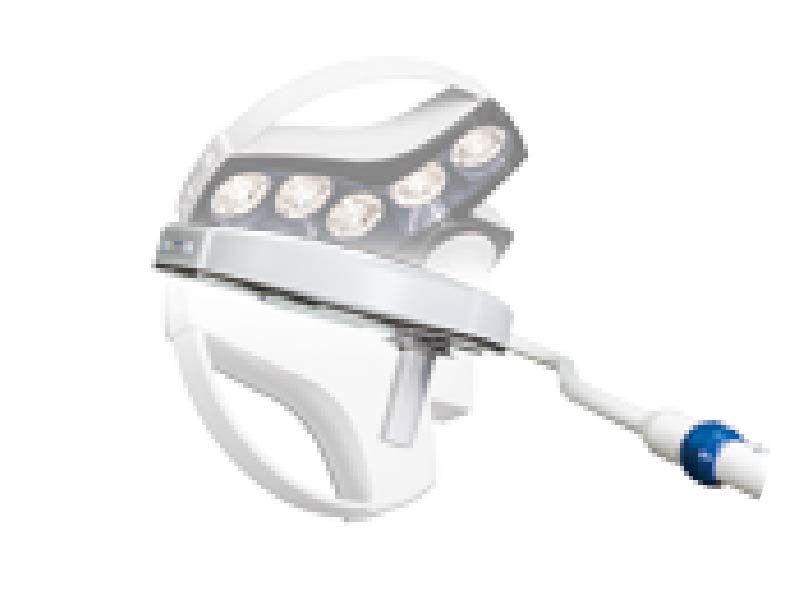

270° rotatable light head with the unique light arm design

CLED 388

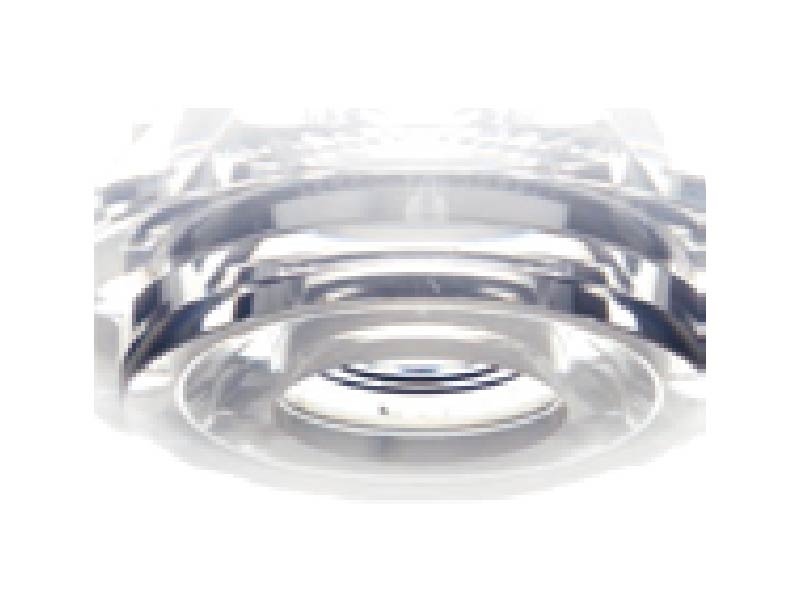

FRESNEL Lens 4500k color temp, 1m focusing distance

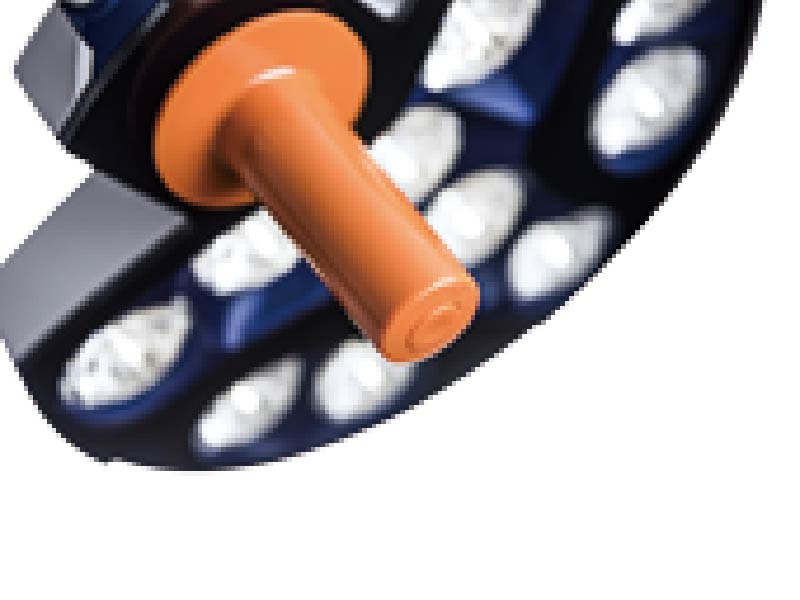

Illuminance controlled by sterilization handle
Long working life, it is easy to use and accurate positioning with compact balance arm.

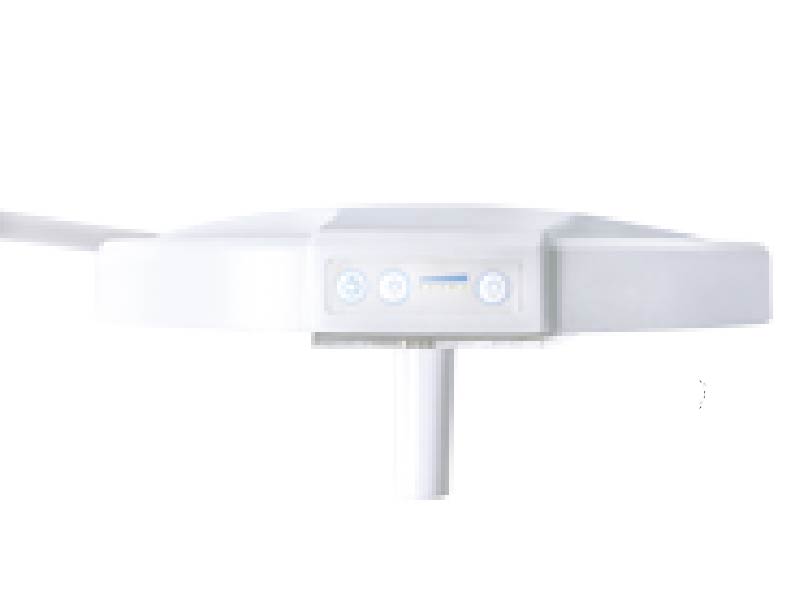

5-stage dimming controlled by simple control panel.

Model

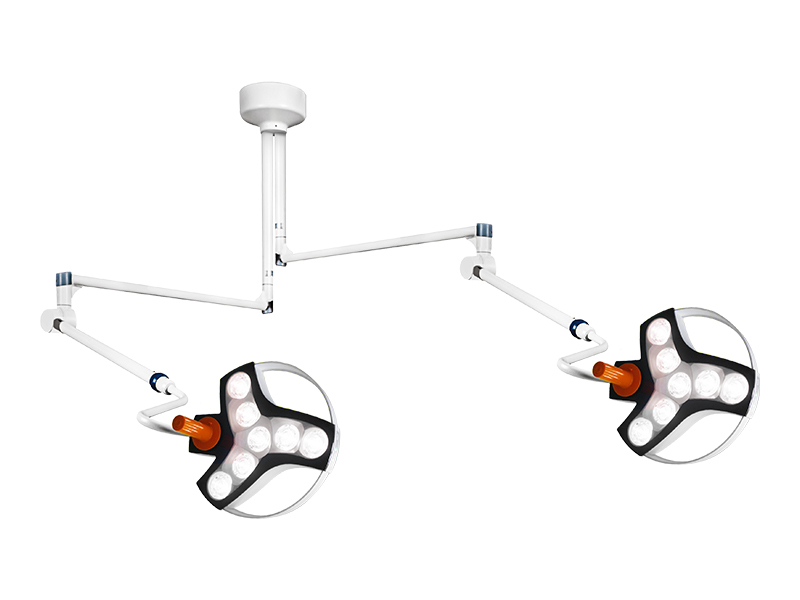

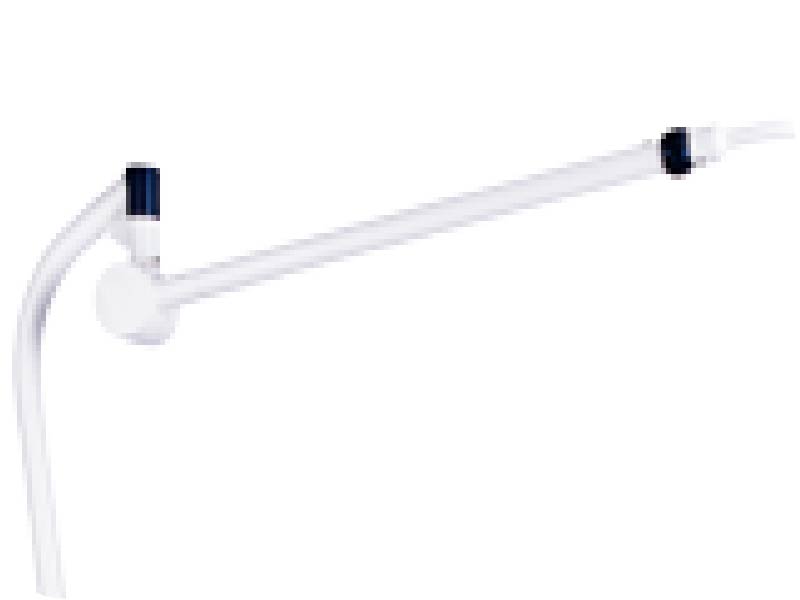

Double arm

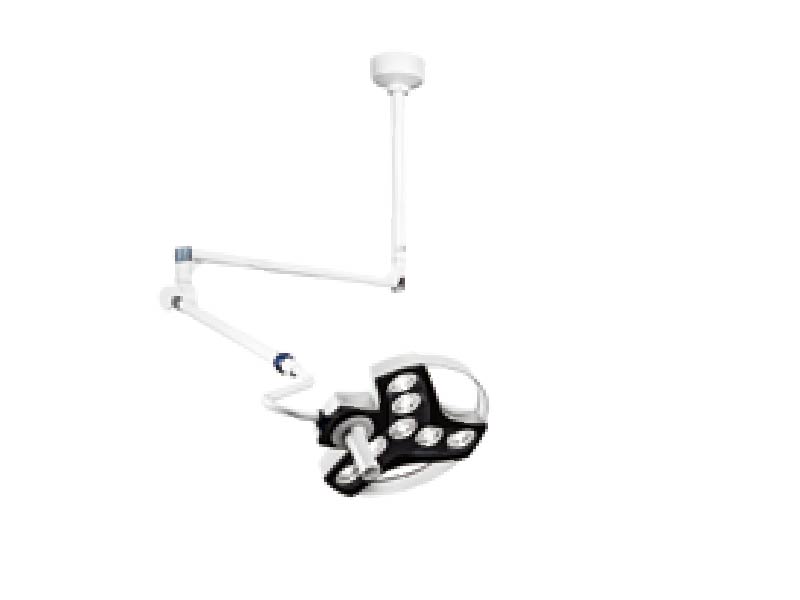

Ceiling type

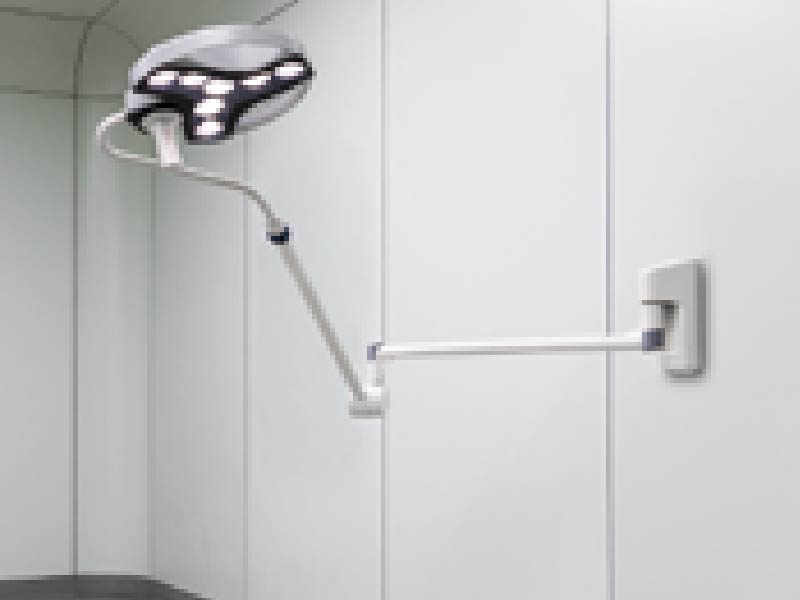

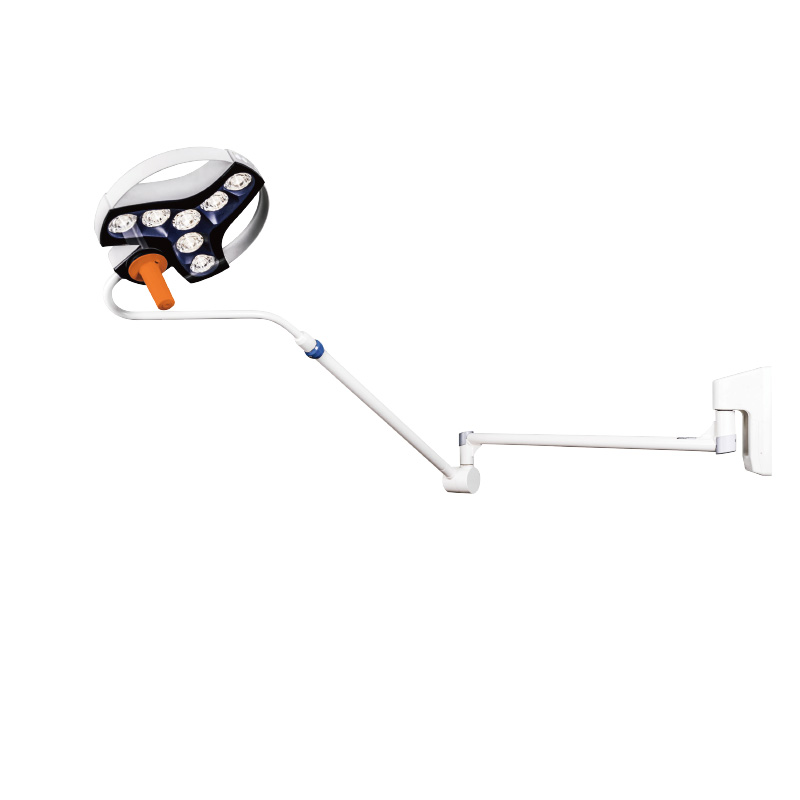

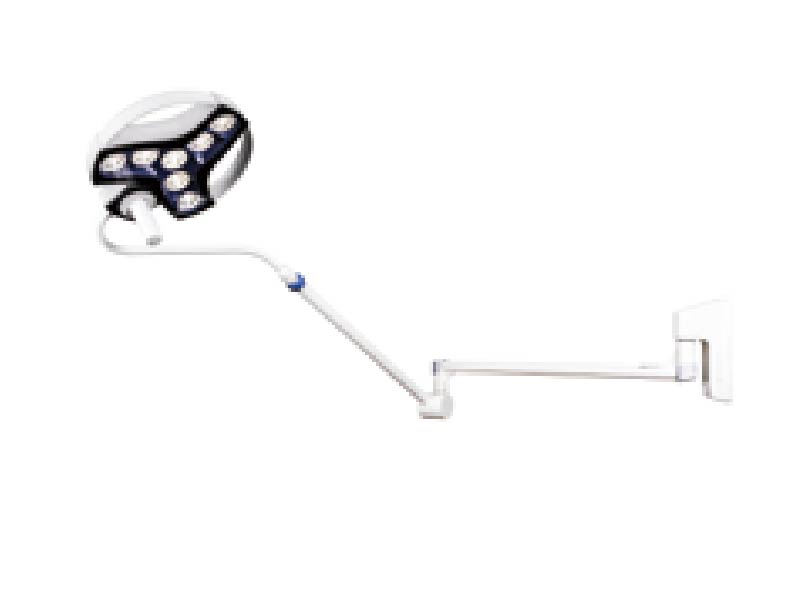

Wall mounted type

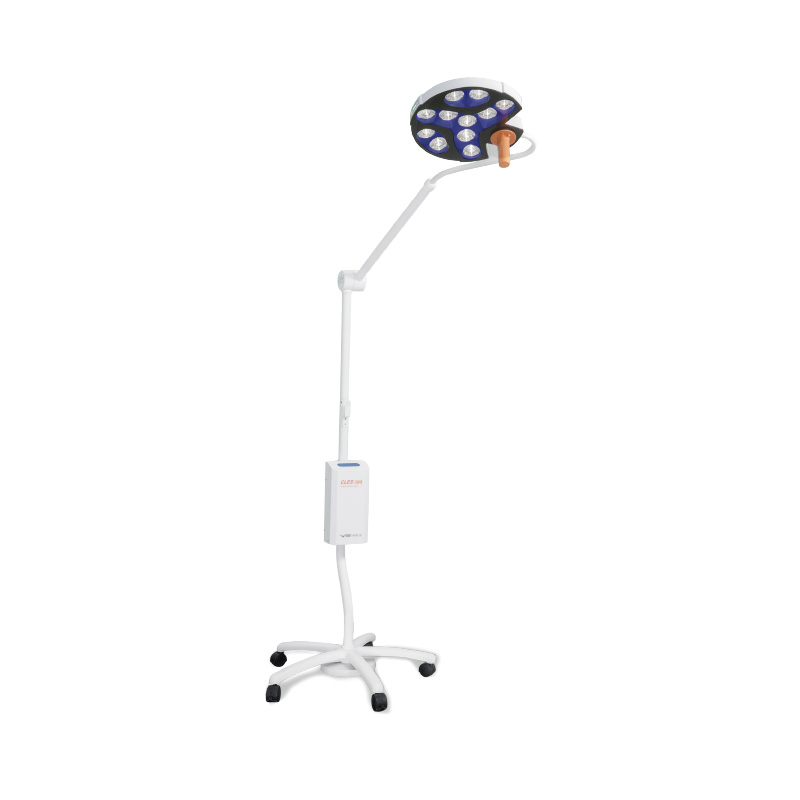

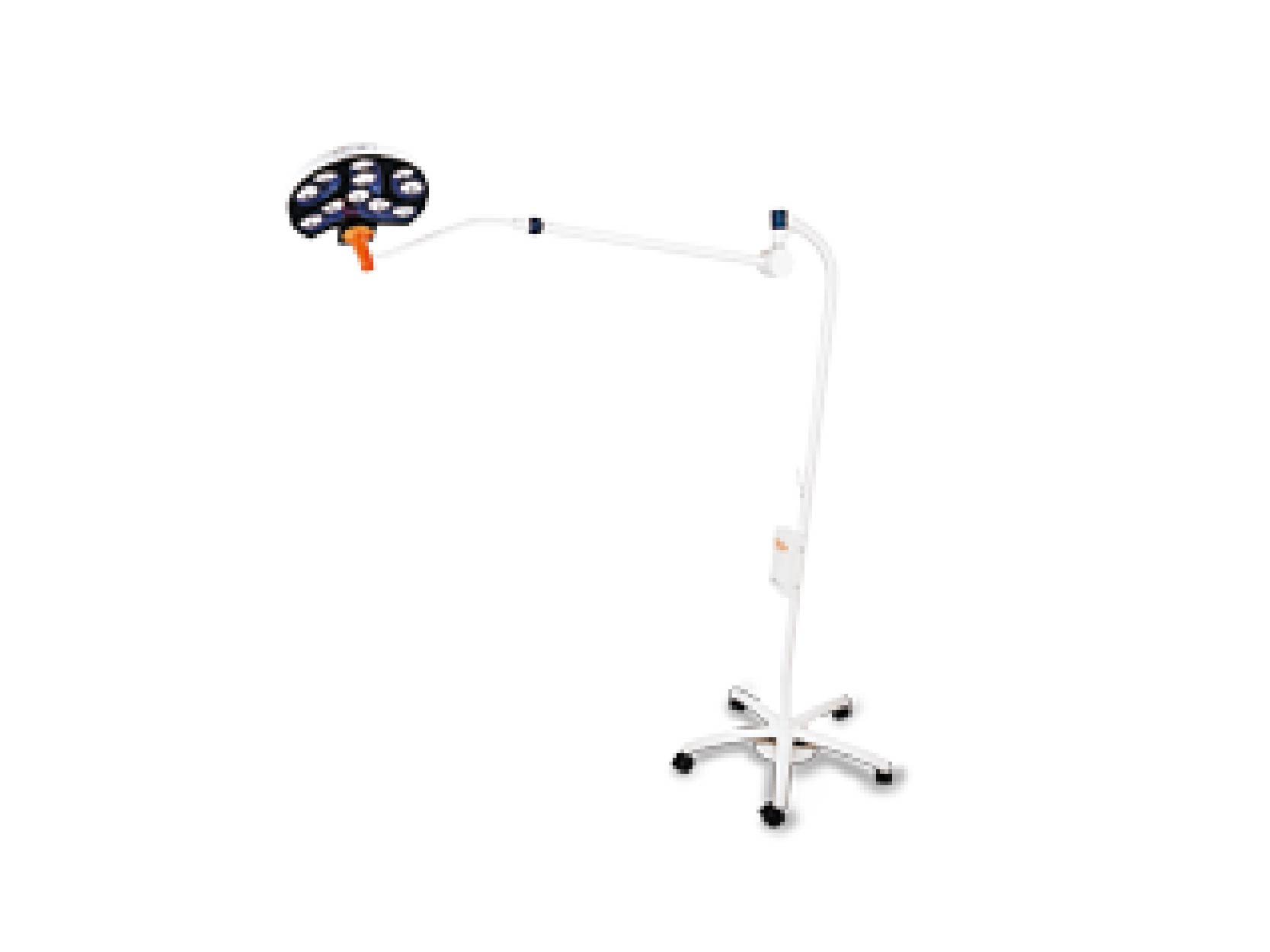

Mobile type

Installation Method

Model	Double arm	Ceiling type	Wall mounted type	Trolley type
CLED CD	✔	✔
CLED WD	✔		✔
CLED M				✔
CLED MB				✔ (With battery)

Note: The three types above (Double arm / Ceiling type / Wall mounted type) are available for CLED328 and CLED388.

Specification

Parameter	CLED 328	CLED 388
Technology	LED	LED
Color temp (K)	4500	4500
Luminance (Lx) Max	≥60000	≥100000
Irradiance (W/m²)	≤210	≤350
Radiance energy (mW/m² lx)	≤3.6	≤3.6
Diameter of light spot (mm)	160	180
Color rending index (Rₐ)	96	96
Adjustment of luminance	5-stage dimming	5-stage dimming
Light head power consumption (W)	≤15	≤20
Input power (VA)	≤20	≤25
Working life (Hrs)	≥50000	≥50000
